Highly Specific Monoclonal SARS-CoV-2 Nucleocapsid Antibodies for IHC-P (FFPE) and IHC



Overview



Antibodies directed against the SARS-CoV-2 nucleocapsid protein

As the Covid-19 pandemic progresses, reliable antibodies to investigate the effects of SARS-CoV-2 in the human body become increasingly important. Two highly specific mouse monoclonal antibodies directed against the SARS-CoV-2 nucleocapsid protein show superior performance on FFPE tissue (IHC-P), in IHC, ICC and in ELISA applications.

  • Clone 4A8 mouse anti-SARS-CoV-2 nucleocapsid protein (Isotype IgG2b) (cat. no. HS-452 011)
  • Clone 53E2 mouse anti-SARS-CoV-2 and SARS-CoV-1 nucleocapsid protein (Isotype IgG2a) (cat. no. HS-452 111 and cat. no HS-452 111BT)

An article pusblished by Krasemann et al. confirms superior results of HistoSure anti-SARS-CoV-2 nucleocapsid antibodies for IHC-based detection of Sars-CoV-2 in human FFPE autopsy COVID-19 lung samples. The multicentric study performed by experienced pathologists in Germany and France finds a positive correlation between Sars-CoV-2 nucleocapsid IHC (HS-452 011) and viral RNA load. HistoSure anti-SARS-CoV-2 nucleocapsid antibodies are predicted to detect the current Omicron variant due to conservation of antibody binding sites. Please find the paper here.



Immunohistochemistry FFPE (IHC-P)

Immunohistochemical staining of formalin-fixed paraffin-embedded COVID-19 patient lung tissue or non-infected control lung using anti-SARS-CoV-2 (COVID-19) Nucleocapsid antibody (Clone 4A8, cat. no. HS-452 011, 1:1000 (A); Clone 53E2, cat. no. HS-452 111 1:500 (B)). Heat mediated antigen retrieval and staining was performed using the Ventana Benchmark XT autostainer; Scale bar: 100μm.*

* Immunohistochemical sections of lung tissues were kindly tested and provided by Dres. Krasemann, Heinrich/Pfefferle, UKE-Hamburg/Germany.

Mouse anti-SARS-CoV-2 nucleocapsid (clone 4A8)
Mouse anti-SARS-CoV-1 and -2 nucleocapsid (clone 53E2)

Figure 1a: Mouse anti-SARS-CoV-2 nucleocapsid (clone 4A8)

Figure 1b: Mouse anti-SARS-CoV-1 and -2 nucleocapsid (clone 53E2)



As depicted in Figure 2 (below) indirect immunostaining of PFA fixed mouse brain sections from K18-hACE2 transgenic mice infected with SARS-CoV-2 virus or non-infected using the monoclonal anti-SARS-CoV-2 nucleocapsid antibody clone 4A8 (cat. no. HS-452 011, dilution 1:1000; red) Nuclei have been visualized by DAPI staining (blue).

The mice were housed and infected at The Helmholtz Center for Infection research in cooperation with Prof. Kröger and Prof. Čičin-Šain.

indirect immunostaining of PFA fixed mouse brain sections
indirect immunostaining of PFA fixed mouse brain sections

Figure 2a: Indirect immunostaining of PFA fixed mouse brain sections with anti-SARS-CoV-2 nucleocapsid antibody HS-452 011.

Figure 2b: Indirect immunostaining of PFA fixed mouse brain sections with anti-SARS-CoV-2 nucleocapsid antibody HS-452 011.



Antigen specificity

Clone #4A8 recognizes exclusively SARS-CoV-2
Clone #53E2 recognizes SARS-CoV-1 and SARS-CoV-2

Figure 3: Clone #4A8 recognizes exclusively SARS-CoV-2. Immunohistochemical staining of formalin fixed paraffin embedded HEK cells transfected with mammalian expression plasmids coding for full-length ALFA- or GFP tagged nucleo-capsid proteins of diverse coronavirus strains using the monoclonal anti-SARS-CoV-2 nucleocapsid antibody clone #4A8 (cat.no. HS-452 011, dilution 1:500, DAB). Nuclei have been counterstained with haematoxylin (blue). The anti-SARS-CoV-2 nucleocapsid antibody clone #4A8 is specific for the SARS-CoV-2 nucleocapsid protein and does not bind to nucleocapsid proteins of other coronavirus strains.



Figure 4: Clone #53E2 recognizes SARS-CoV-1 and SARS-CoV-2. Immunohistochemical staining of formalin fixed paraffin embedded HEK cells transfected with mammalian expression plasmids coding for full-length ALFA- or GFP tagged nucleo-capsid proteins of diverse coronavirus strains using the monoclonal anti-SARS-CoV-2 nucleocapsid antibody clone #53E2 (cat.no. HS-452 111, dilution 1:2000, DAB). Nuclei have been counterstained with haematoxylin (blue). The anti-SARS-CoV-2 nucleocapsid antibody clone 53E2 binds to SARS-CoV-1 and SARS-CoV-2 nucleocapsid proteins and does not bind to nucleocapsid proteins of other coronavirus strains.



ELISA application

Clone #4A8 and clone #53E2 were used in Sandwich ELISA settings to demonstrate the sensitivity of both antibodies. 50 ng/well of Clone #4A8 (cat.no. HS-452 011) was coated as capture antibody. Biotinylated clone #53E2 (cat.no. HS-452 111BT, 1:2000) was used as detection antibody. Streptavidin-HRP and TMB were used as development agents. Absorbance was detected at 405 nm. (A) Different concentrations of recombinant nucleocapsid protein (SARS-CoV-2) (50 ng/mL – 23.4 pg/mL) were tested in ELISA. X-axis in log 10 scale. (B) GFP tagged nucleocapsid protein (SARS-CoV-2) transfected HEK cells were FACS sorted. Different cell numbers of nucleocapsid protein (SARS-CoV-2) positive cells were lysed in 1% Triton X-100/PBS buffer and lysates were used in Sandwich ELISA to detect the nucleocapsid protein (SARS-CoV-2).

ELISA settings are to demonstrate the sensitivity of both antibodies.
ELISA settings are to demonstrate the sensitivity of both antibodies.

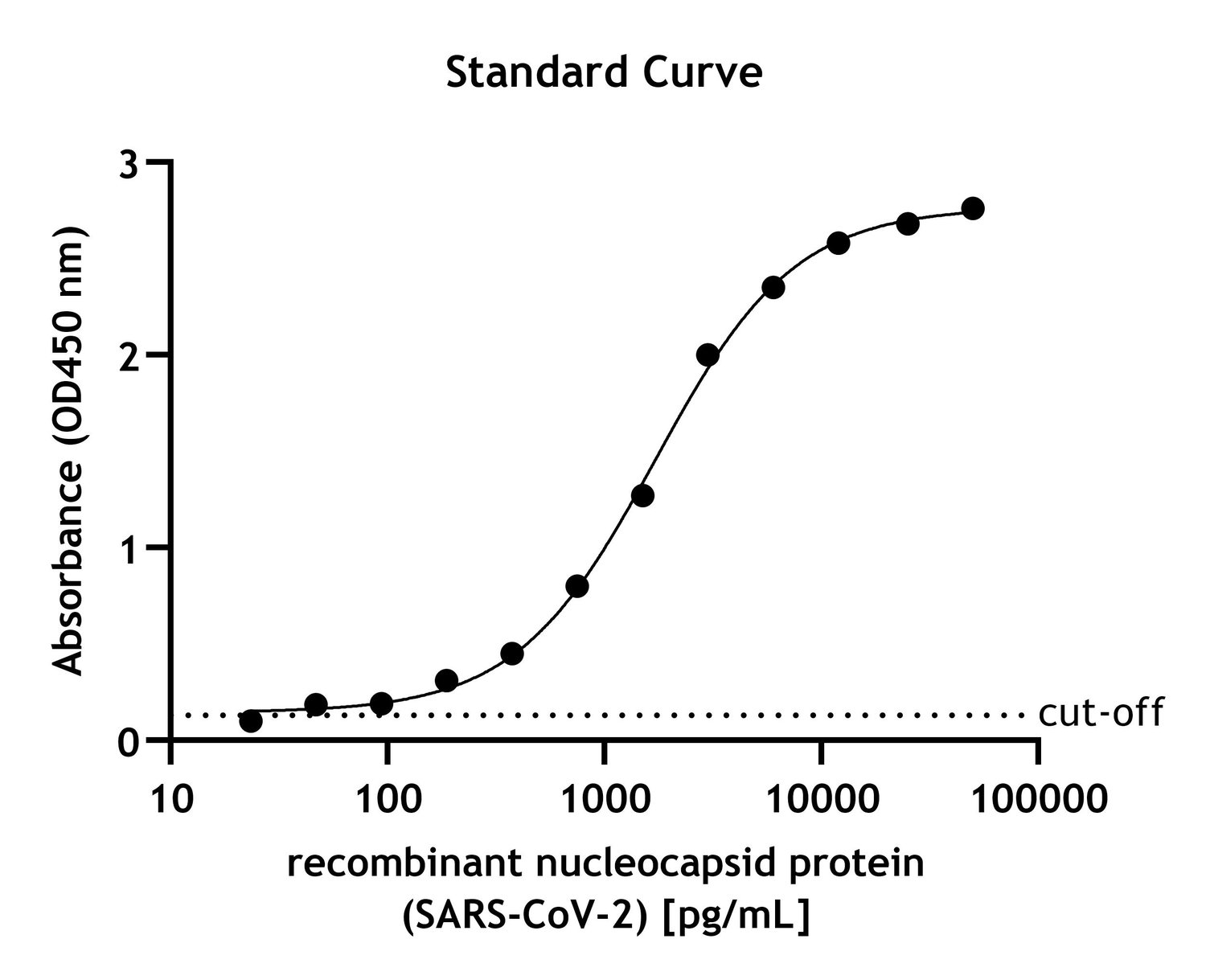

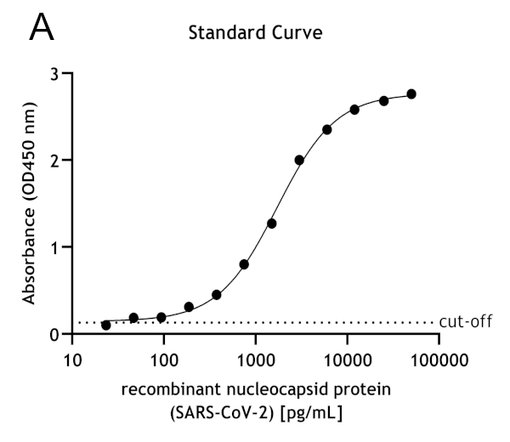

Figure 5a: Different concentrations of recombinant nucleocapsid protein (SARS-CoV-2) (50 ng/mL – 23.4 pg/mL) were tested in ELISA. X-axis in log 10 scale.

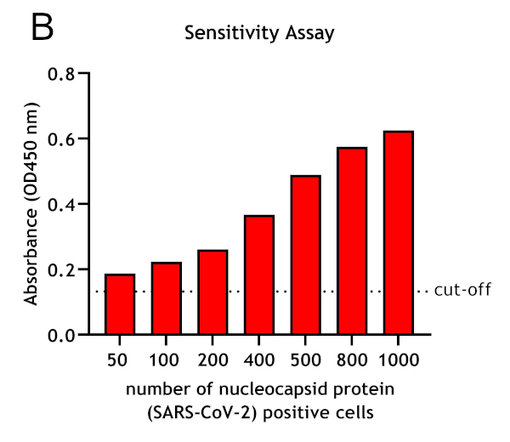

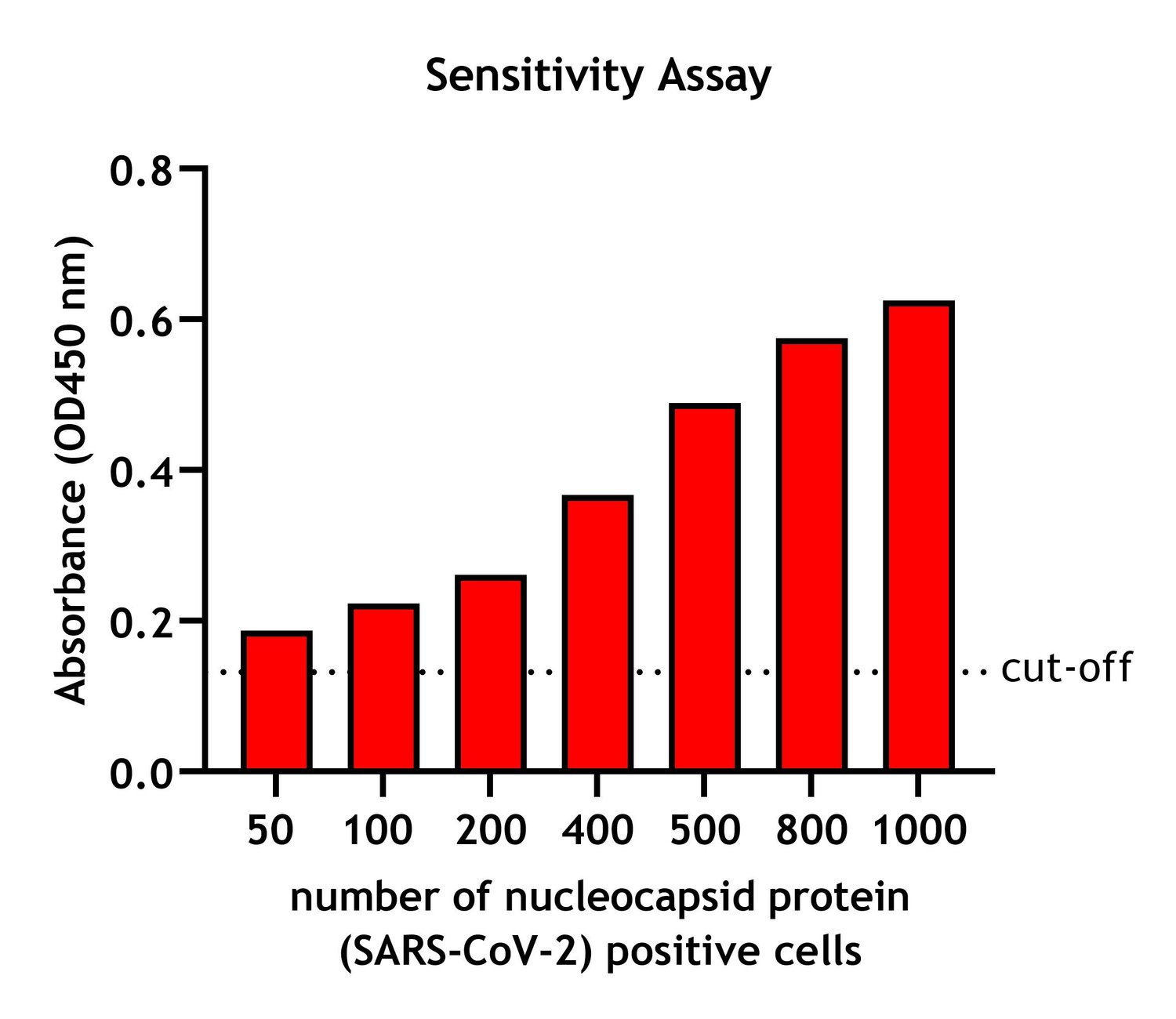

Figure 5b: GFP tagged nucleocapsid protein (SARS-CoV-2) transfected HEK cells were FACS sorted.





Products

Dear Customer,
thank you for your interest in our products. Our high-quality antibodies are featured in the DNA-PAINT Neuro-Imaging Kits, which are developed and distributed by Massive Photonics GmbH.

To ensure your request is handled efficiently, please use the provided input form to contact Massive Photonics directly.

With kind regards,
Your SYSY Antibodies Team


Cat. No. Product Description Application Quantity Price Cart
HS-452 111
Nucleocapsid CoV-1/2, mouse, monoclonal, purified IgG IgGWB ICC IHC IHC-P 200 µl$420.00
HS-452 111BT
Nucleocapsid CoV-1/2, mouse, monoclonal, purified IgG IgG, biotinIHC-P ELISA 100 µg$470.00
HS-452 011
Nucleocapsid CoV-2, mouse, monoclonal, purified IgG IgGWB ICC IHC IHC-P ELISA 200 µl$420.00
Result count: 3


Literature

Krasemann et al. 2022: Assessing and improving the validity of COVID-19 autopsy studies - a multicenter approach to establish essential standards for immunohistochemical and ultrastructural analyses.PMID: 35930888
